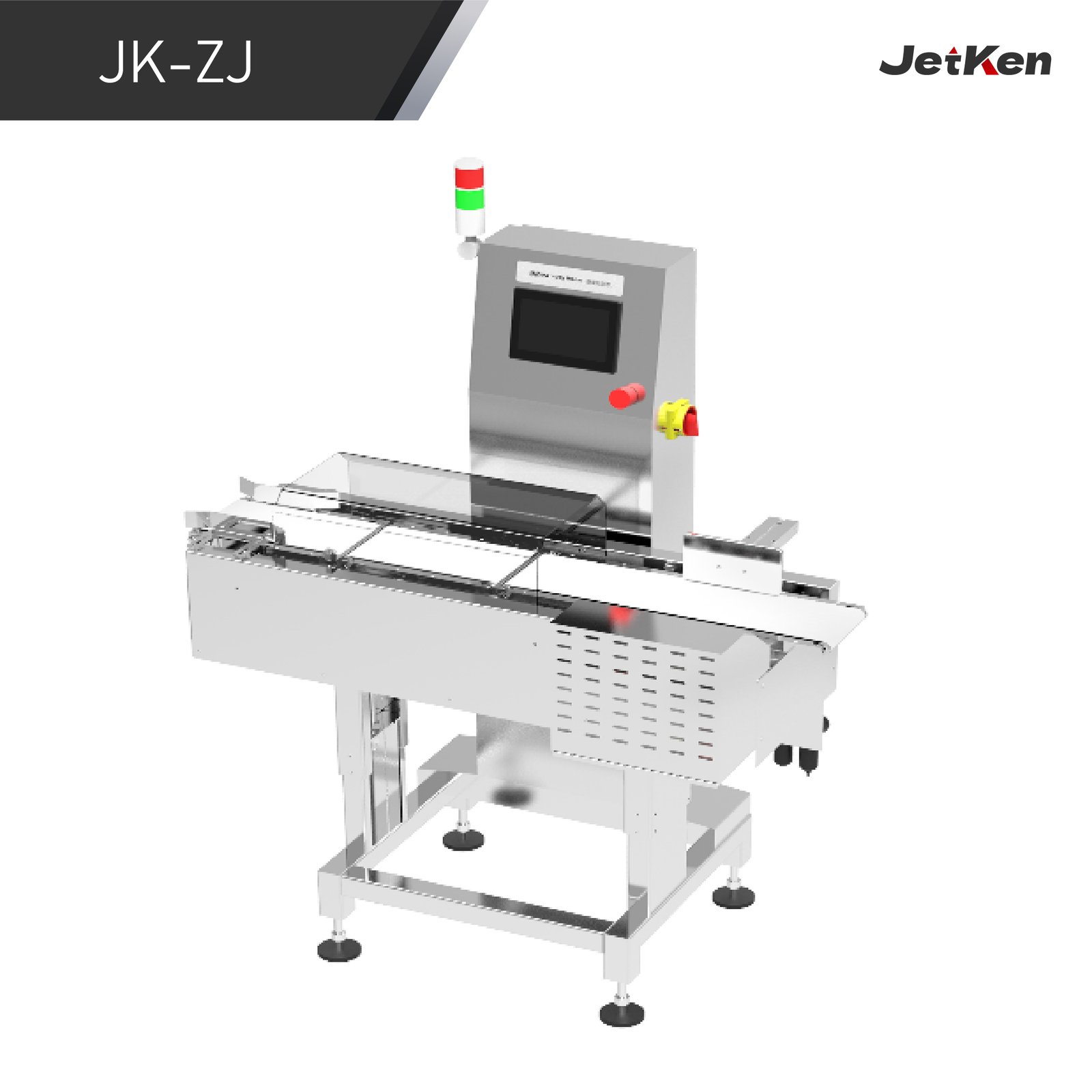

This machine can perform online weight detection or weight sorting for a variety of products. It features high accuracy, stable performance, and simple and practical operation, and can meet the online weighing requirements of industries such as food, daily necessities, pharmaceuticals, and chemicals.
Main technical parameters
| Model Number | LHWS-300 |
| Maximum Capacity | 3000g |
| Weighing Range | 5g~3000g |
| Highest Accuracy | ±0.5g |
| Minimum Scale | 0.1g |
| Belt Linear Speed | 20-80 m/min (adjustable) |
| Belt Width | 300mm |
| Table Height | 680-900±50mm (standard) |
| Conveying Direction | Facing the screen directly (from left to right) |
| Operating Interface | 7-inch color touchscreen |
| Operating Method | Touch operation |
| Preset Specifications | 100 items |
Environmental conditions for use
| Operating temperature | 0~40℃ (To ensure accuracy, the temperature variation should not exceed ±5℃/h). |
| Operating humidity | Relative humidity 30-85%, but no frost. |
Other matters
| Electrical characteristics | ||
| Power supply: | AC220V 50Hz | |
| power consumption | Approximately 400W | |
| Functional risk items (precautions) | ||
| 1 | The equipment must be reliably grounded. | |
| 2 | Do not touch it during operation (it may cause accidental triggering or other actions). | |
| 3 | In the surrounding environment of the machine, there should be as few air vents as possible (e.g., fans, exhaust pipes, central air conditioning vents). | |
| 4 | The machine must be placed horizontally, and the tilt angle should not exceed 5 degrees. | |
