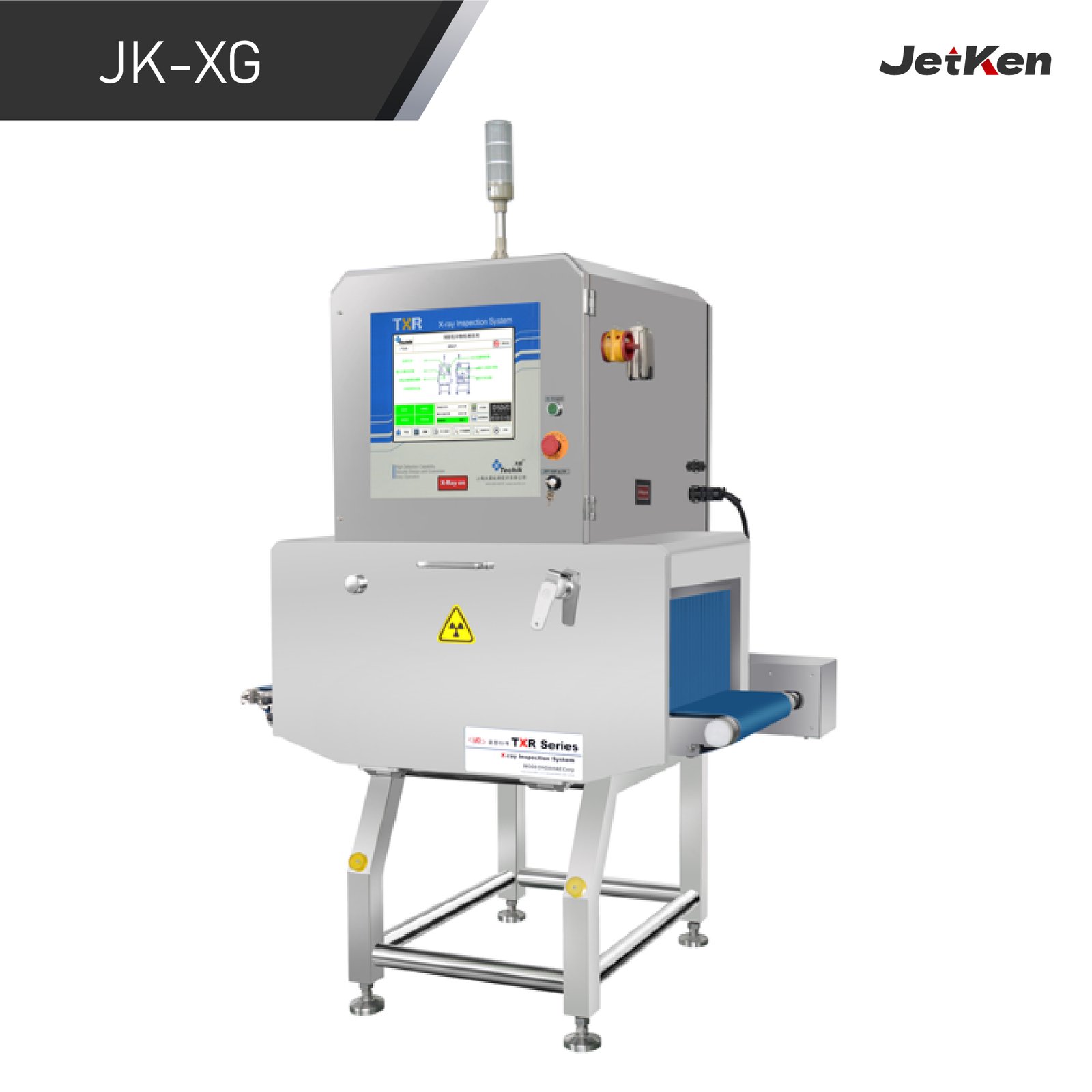

It works by irradiating the product with X-rays to obtain a transmission image, and then using image processing technology to determine whether the image contains foreign objects.Its detection range is not limited to product type, packaging form, or packaging material, including plastic packaging, aluminum foil packaging, glass jars, metal cans, and bulk products.It can detect foreign objects of relatively high density, including both metals and non-metals, such as stainless steel, iron, ceramics, glass, stones, bones, hard rubber, and hard plastics. Specific requirements depend on the product being tested.
Equipment technical parameters
| X-ray source | Max:210W/80Kv; 0.4mm detector
|
|||
| Detection size parameters | Maximum detection height | 150mm | ||
| Maximum detection width | 400mm | |||
| Conveying device parameters | Conveyor belt speed | 10 – 50 m/min | ||
| Maximum load capacity of the conveyor system | 5Kg | |||
| Conveyor belt to ground | 750+100mm | |||
| Display screen | 15-inch TFT full-color screen | |||
| Operating system | Windows 7 | |||
| Operating mode | Touchscreen operation | |||
| Supported data interface | LAN port, USB port | |||
| Product management | Complete Product Log | |||
| Parameter adjustment | Self-learning/manual learning options available | |||
| Image management | Image saving/printing/analysis | |||
| Power supply | AC 50HZ 220V | |||
| Main body material | SUS304 | |||
| Surface treatment | Stainless steel brushed | |||
| Cleaning method | Easy to clean | |||
| Temperature regulation | Air conditioning cooling | |||
| Protection level | IP54 | |||
| Ambient temperature | 0-40℃ | |||
| Ambient humidity | 30-90%, no dew | |||
| X-ray leakage | < 1 microsievert/hour | |||
| Protection method | Lead-free food-grade protective curtain | |||
| Alarm method | Upon detection of a foreign object: the audible and visual alarm may stop or continue (configurable). | |||
| Troubleshooting method | Push rod rejection + locked scrap bin | |||
Note: The selection of X-ray source and receiver depends on the type and characteristics of the product. Please communicate before matching.
