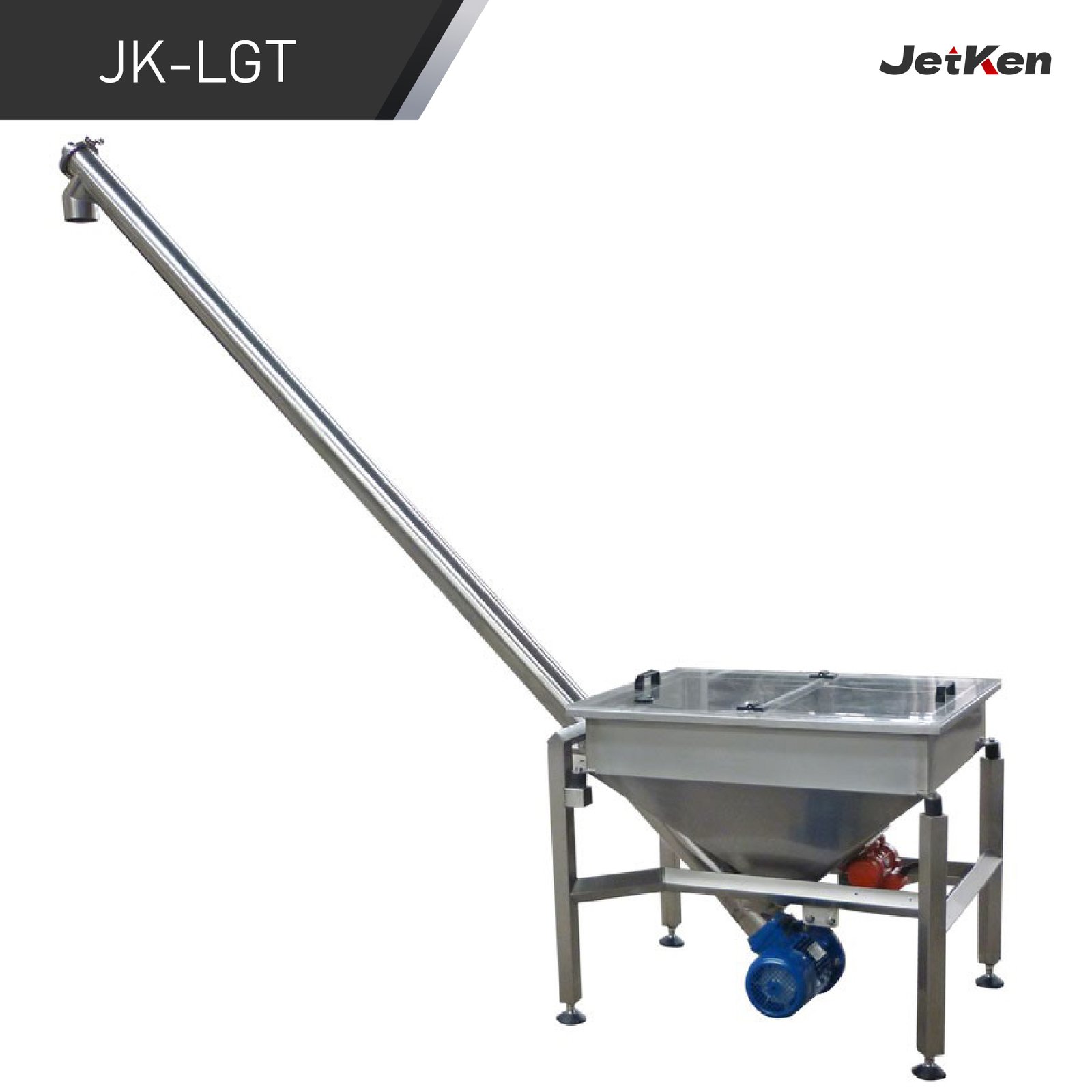

The machine features a square hopper with a vibration device; a round hopper can also be customized. It has an all-stainless steel construction, with all material contact parts made of 304 stainless steel. In addition to the conveying capacities listed above, other conveying capacities can also be customized.
Main Technical Data
| Model | MF-S2-2K | MF-S2-3K | MF-S2-5K | MF-S2-7K | MF-S2-8K | MF-S2-10K | MF-S2-12K |
| Charging Capacity | 2m3/h | 3m3/h | 5 m3/h | 7 m3/h | 8 m3/h | 10 m3/h | 12 m3/h |
| Diameter of pipe | φ102 | φ114 | φ141 | φ159 | Φ168 | Φ204 | Φ219 |
| Total power | 0.58KW | 0.78W | 1.53KW | 2.23KW | 2.23KW | 3.03KW | 3.03KW |
| Total Weight | 100kg | 130kg | 170kg | 200kg | 220kg | 250kg | 270kg |
| Hopper Volume | 100L | 200L | 200L | 200L | 200L | 200L | 200L |
| Thickness of Hopper | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm | 1.5mm |
| Thickness of Pipe | 2.0mm | 2.0mm | 2.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Outer dia.of Screw | Φ88mm | Φ100mm | Φ126mm | Φ141mm | Φ150mm | Φ185mm | Φ200mm |
| Pitch | 76mm | 80mm | 100mm | 110mm | 120mm | 160mm | 180mm |
| Thickness of Pitch | 2mm | 2mm | 2.5mm | 2.5mm | 2.5mm | 3mm | 3mm |
| Dia.of Axis | Φ32mm | Φ32mm | Φ42mm | Φ48mm | Φ48mm | Φ57mm | Φ57mm |
| Thickness of Axis | 3mm | 3mm | 3mm | 4mm | 4mm | 4mm | 4mm |
| Power supply | 3P AC208-415V 50/60Hz |
| Charging angle | Standard 45 degree,30~60 degree are also available. |
| Charging Height | Standard 1.85M,1~5M could be designed and manufactured. |
