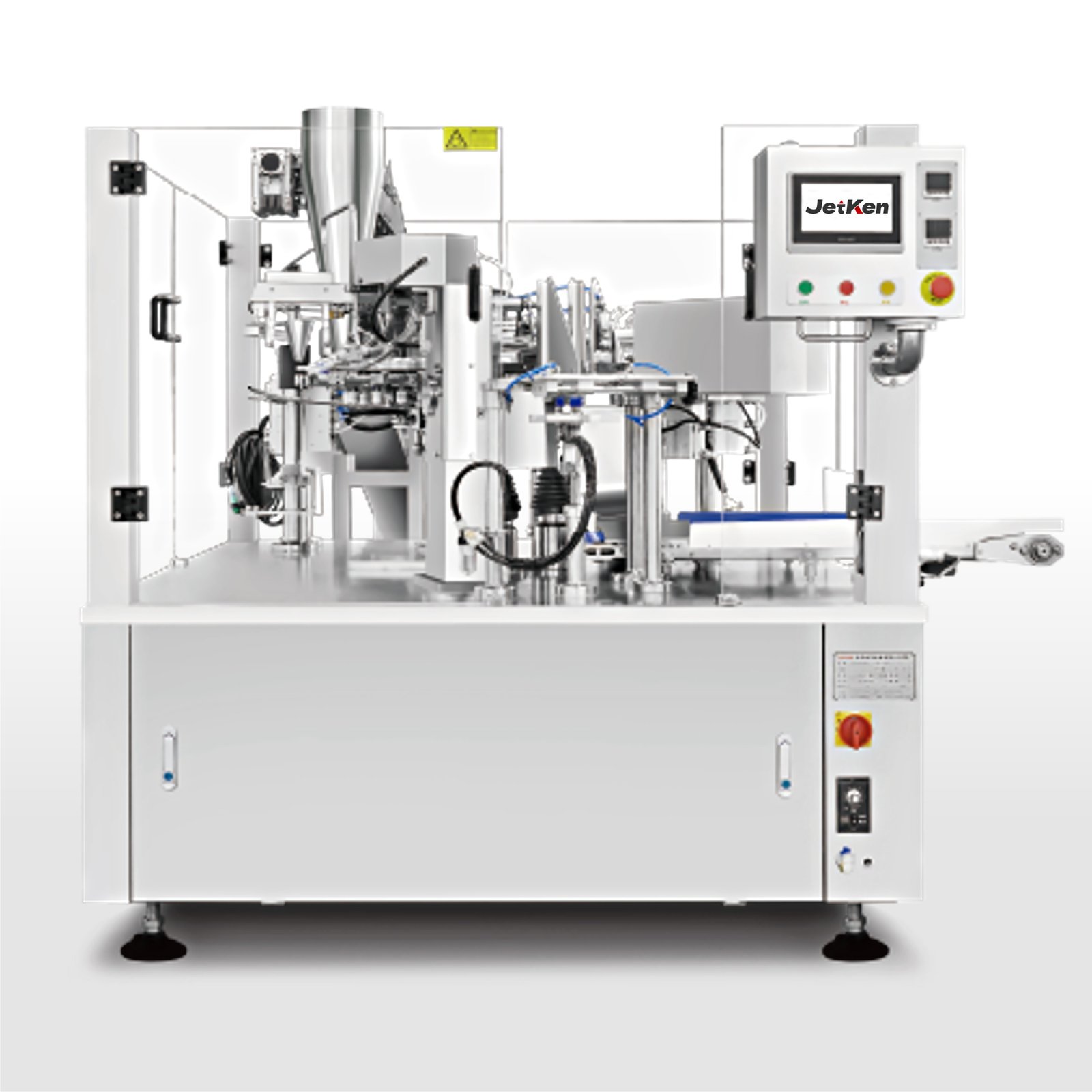

The JK10-160 is a multi-functional packaging machine for small pre-made bags.It features a rotary table structure with 10 stations, making it suitable for products requiring multiple packaging functions. For example, it can add secondary feeding, inspection, and other functions to a standard pre-made bag packaging machine that is already fully functional. Furthermore, it requires fewer rotations at the same speed, making it ideal for pre-made bag packaging of liquids and less prone to spillage.
Technical Specifications
| Model | JK10-160 |
| Bag types | Flat bags / Back seal bags / Stand-up pouches / Zipper bags |
| No.of Working stations | 10 stations:
1. Bag loading 2. Reserve 3. Open bag 4. Add material one 5. Add material two 6. Reserve 7. Reserve 8. Reserve 9. Heat seal 10. Shaping + Side vertical output |
| Bag size | W: 60-160 mm;
L: 80-370 mm |
| Fill weight | ≤ 500 g |
| Packaging speed | ≤ 100 packs/min (depending on condition of product and packaging bag material used) |
| Weight | 1450 kg |
| Dimensions (L*W*H) | 1840 mm* 1610 mm* 1550 mm (Length x Width x Height)
Including screen and handwheel. |
| Total power | 3.22 kw (double heat seal, excluding vacuum pump） |
| Drive power supply | 380 V three-phase five-wire 50 Hz
(other power supplies can be customized) |
| Compress air requirement | ≥ 0.5 m³/min (compress air is provided by user) |
Electrical Configuration
| No. | Name | Brand | Place of origin |
| 1 | PLC | Huichuan (Siemens optional) | China |
| 2 | Touchscreen | Huichuan (Siemens optional) | China |
| 3 | Frequency converter | Huichuan (Siemens optional) | China |
| 4 | Main motor | KONE | China |
| 5 | Proximity switch | SICK | Germany |
| 6 | Vacuum pump | ORION | Japan |
| 7 | Solenoid valve | SMC | Japan |
| 8 | Air cylinder | SMC / AIRTAC | Japan/ Taiwan, China |
