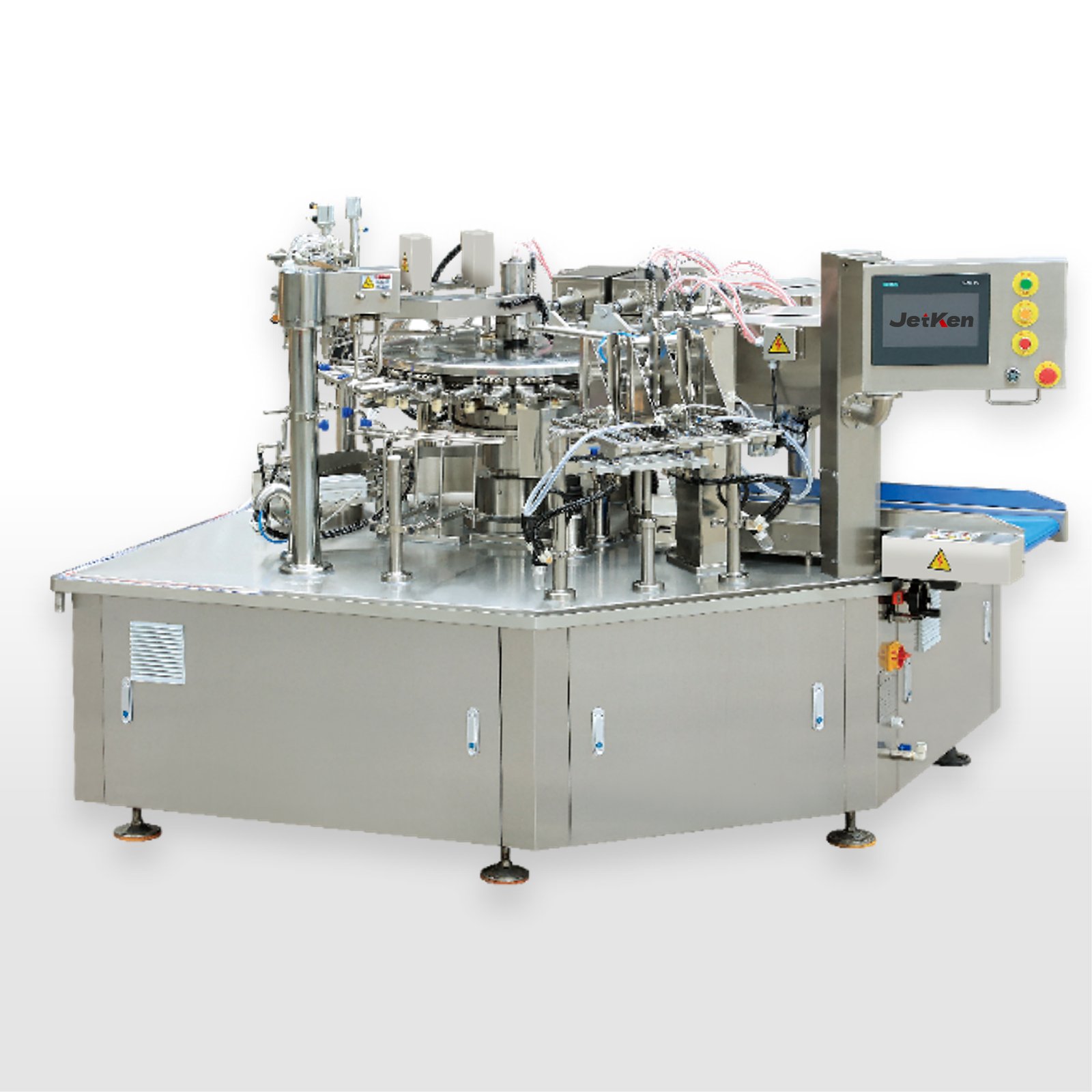

The JK8-S120 is suitable for high-speed packaging of small-sized pre-made bag products. It features a small footprint and high production efficiency. Compared with conventional packaging equipment, this equipment can complete the packaging process of two bags per station, doubling the production capacity. And it has a turntable structure and multiple stations for product packaging. It includes functions such as robotic arm bag gripping, online coding, robotic arm bag opening, material feeding, bag mouth cleaning, venting, and sealing, which stably and efficiently produce standardized and aesthetically pleasing products. It can be paired with different feeding systems to achieve conventional packaging of various pre-made bags.
Technical Specifications
| Model | JK8-S120 |
| Bag types | Flat bags / Back seal bags / Stand-up pouches / Zipper bags |
| No.of Working stations | 8 stations:
1. Bag loading 2. Emptying 3. Bag opening 4. Material feeding 5. Reserve 6. Reserve 7. Heat sealing 8. Shaping and finished product output |
| Bag size | W: 50-120 mm;
L: 80-370 mm |
| Fill weight | ≤ 500 g |
| Packaging speed | ≤ 130 packs/min (depending on condition of product and packaging bag material used) |
| Weight | 2500 kg |
| Dimensions (L*W*H) | 1850 mm* 2360 mm* 1550 mm (Length x Width x Height)
Including screen and handwheel. |
| Total power | 5.41 kw (double heat seal, excluding vacuum pump） |
| Drive power supply | 380 V three-phase five-wire 50 Hz
(other power supplies can be customized) |
| Compress air requirement | ≥ 0.4 m³/min (compress air is provided by user) |
Electrical Configuration
| No. | Name | Brand | Place of origin |
| 1 | PLC | Huichuan (Siemens optional) | China |
| 2 | Touchscreen | Huichuan (Siemens optional) | China |
| 3 | Frequency converter | Huichuan (Siemens optional) | China |
| 4 | Main motor | KONE | China |
| 5 | Proximity switch | SICK | Germany |
| 6 | Vacuum pump | ORION | Japan |
| 7 | Solenoid valve | SMC | Japan |
| 8 | Air cylinder | SMC / AIRTAC | Japan/ Taiwan, China |
