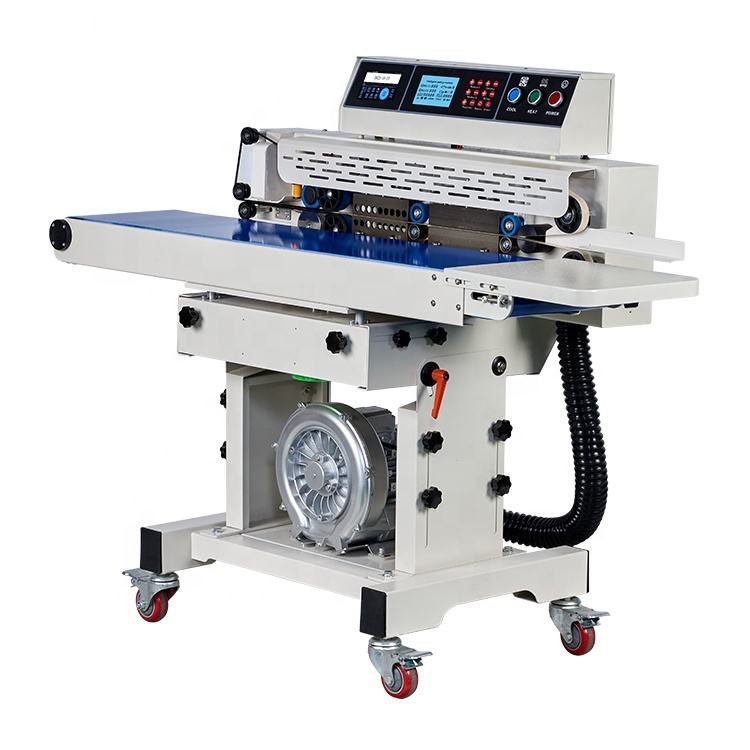

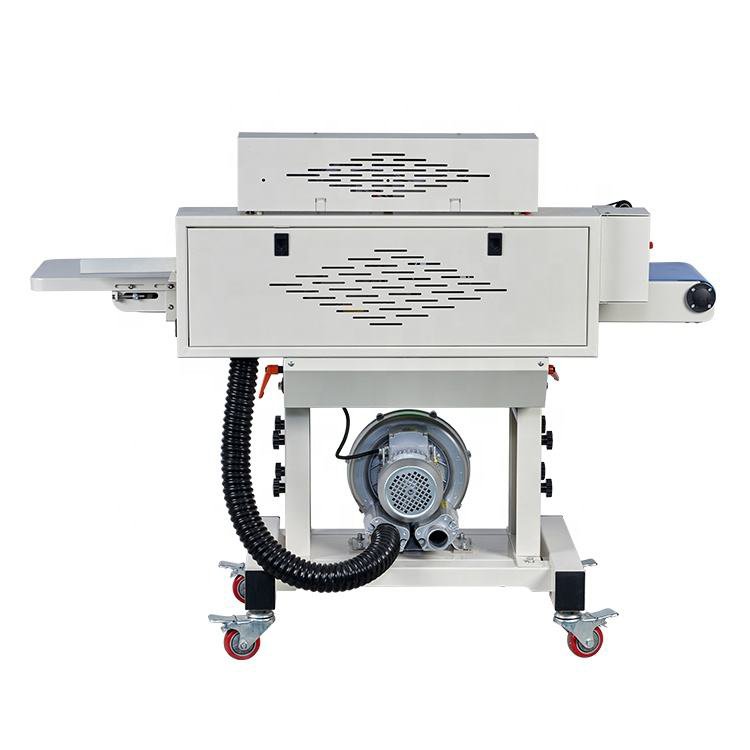

JKF-280CC Continuous Vacuum Sealing Machine

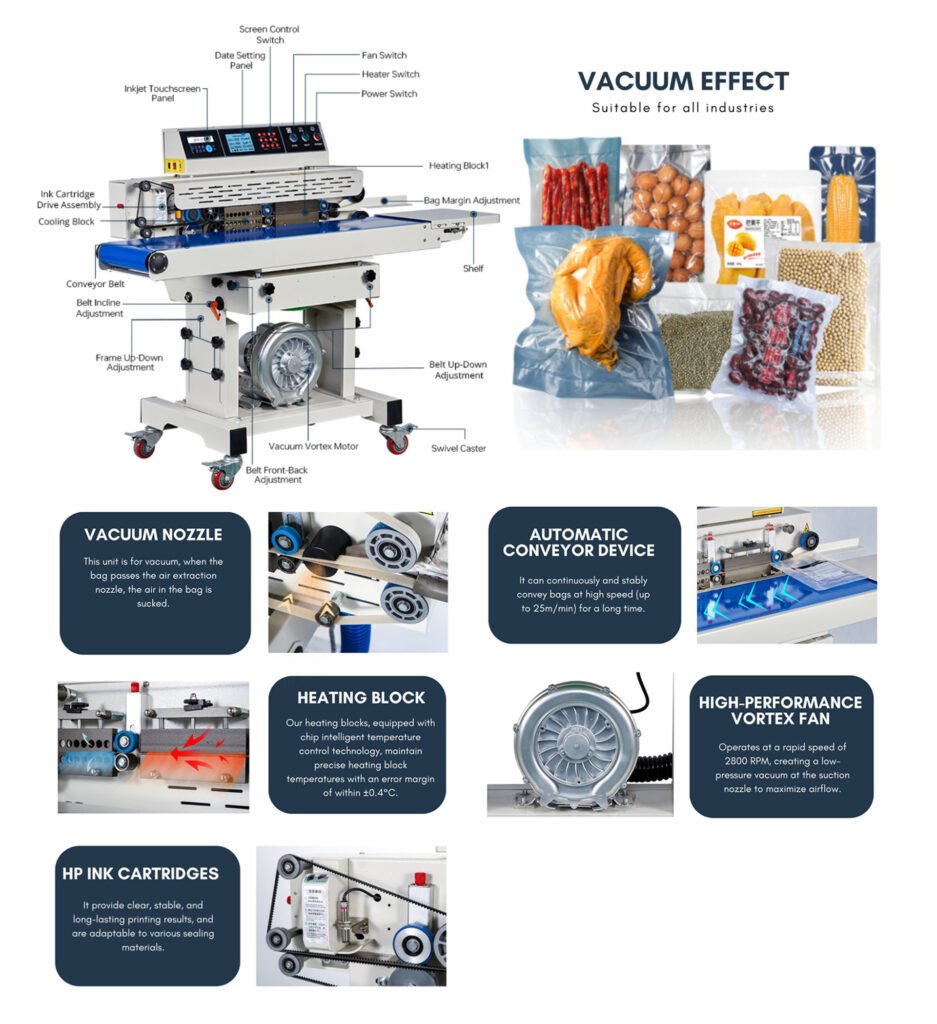

The JKF-280CC is a new generation of continuous vacuuming (air extraction), coding, and sealing multi-functional integrated machine. It has a completely different working method from ordinary vacuum sealing machines on the market: air extraction (vacuuming) is continuously completed by an air nozzle that follows the sealing conveyor, which can not only achieve the effect of true vacuuming of products, but also improve work efficiency. The whole machine is controlled by three independent control systems that control air extraction (following), sealing, and coding respectively. Combined with ingenious mechanical design, the actions of the three parts are perfectly coordinated!

Technical Parameters

Power Supply 220V/50HZ-60HZ Air Source Pressure 0.5-0.8Mpa
Power 1000W Air Consumption 280L/min
Conveyor Motor 24V/120W/18K Vacuum Degree -0.05-.88Mpa
Conveying Speed 0-25m/min Connection Diameter 45mm
Sealing Width 10mm Sealing Belt Spec 1450*18*0.22mm
Conveyor Belt Spec 2440*250*2mm Max Bag Size 400*300mm*15c
Temp. Control Range 0-280℃ Heating Tube Spec 180*10mm*400w*2
Conveyor Height 720-900mm Max Load Capacity 10kg
Machine Size 1300*530*1060mm Toothed Belt M5*670/770mm
