JKF-280LW Standing And Lying All-around Sealing Machine

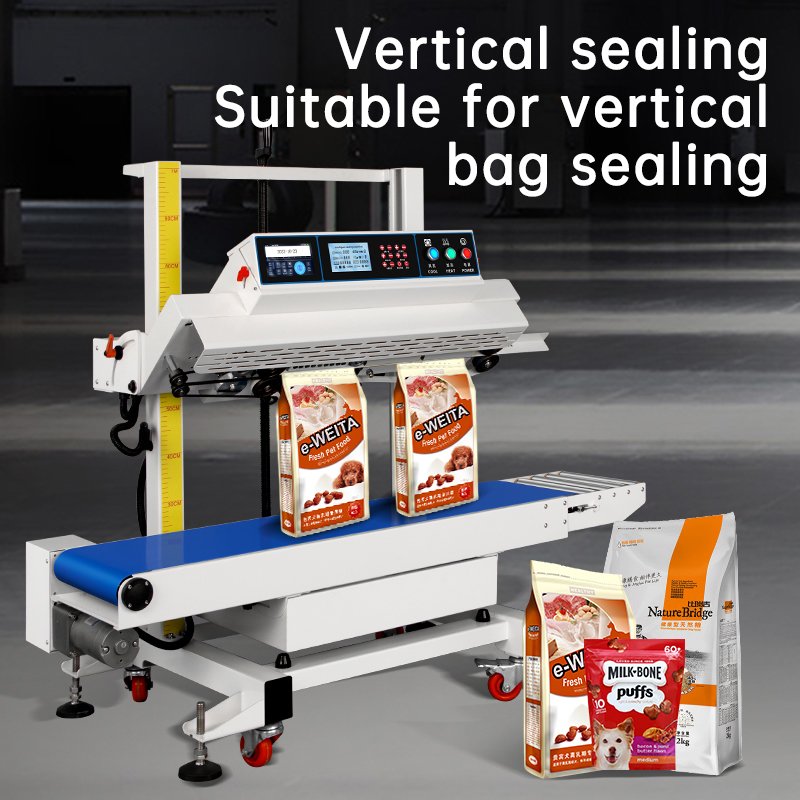

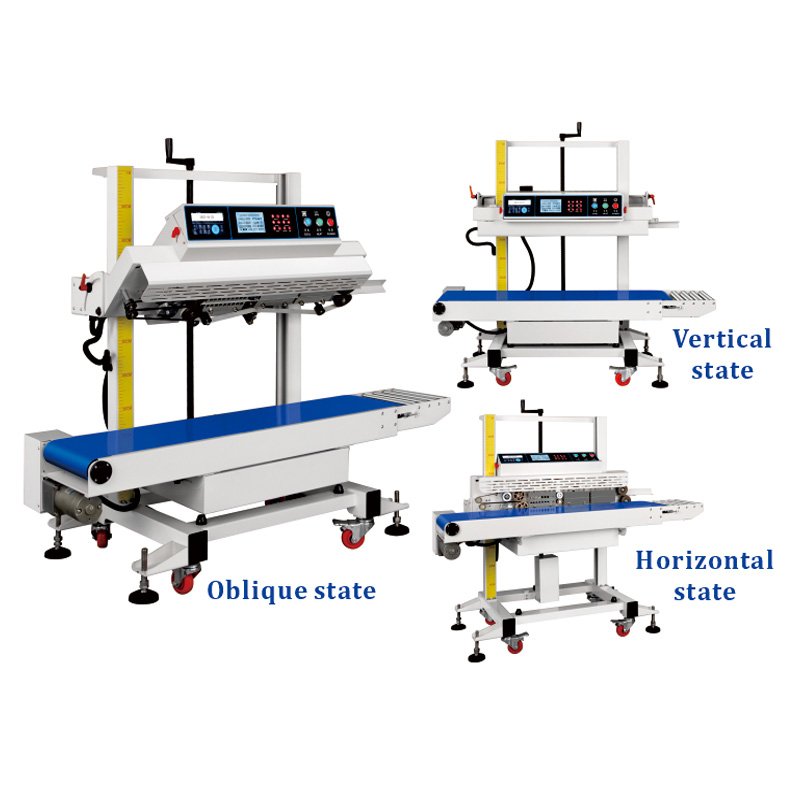

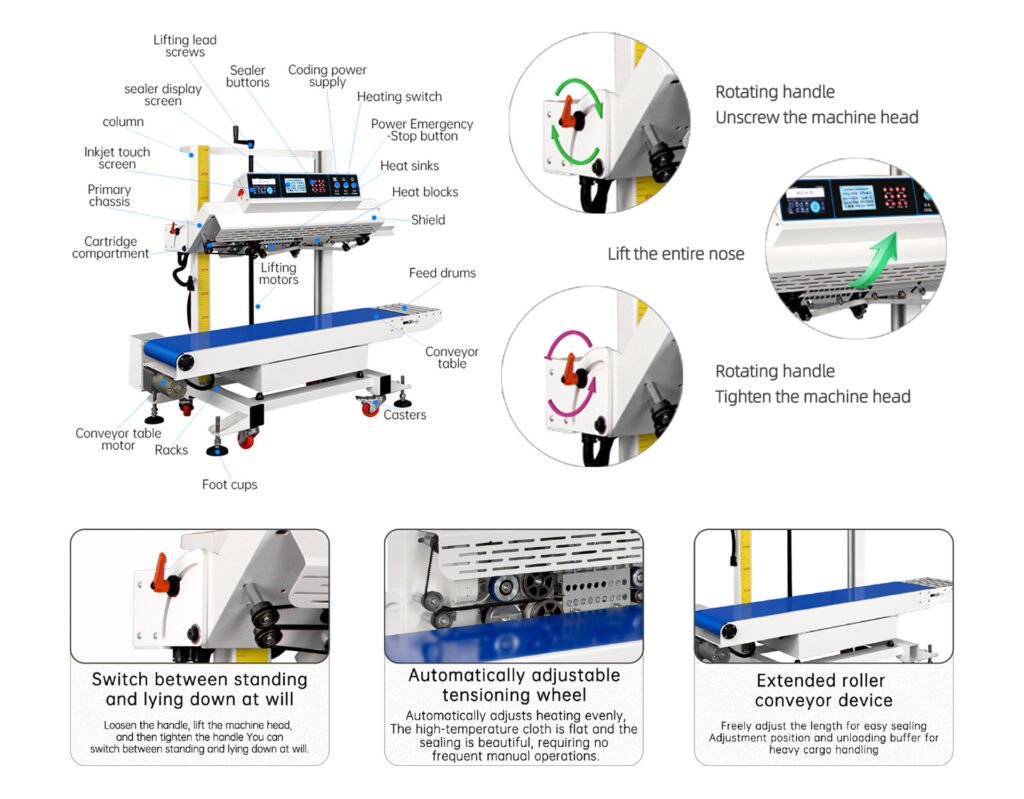

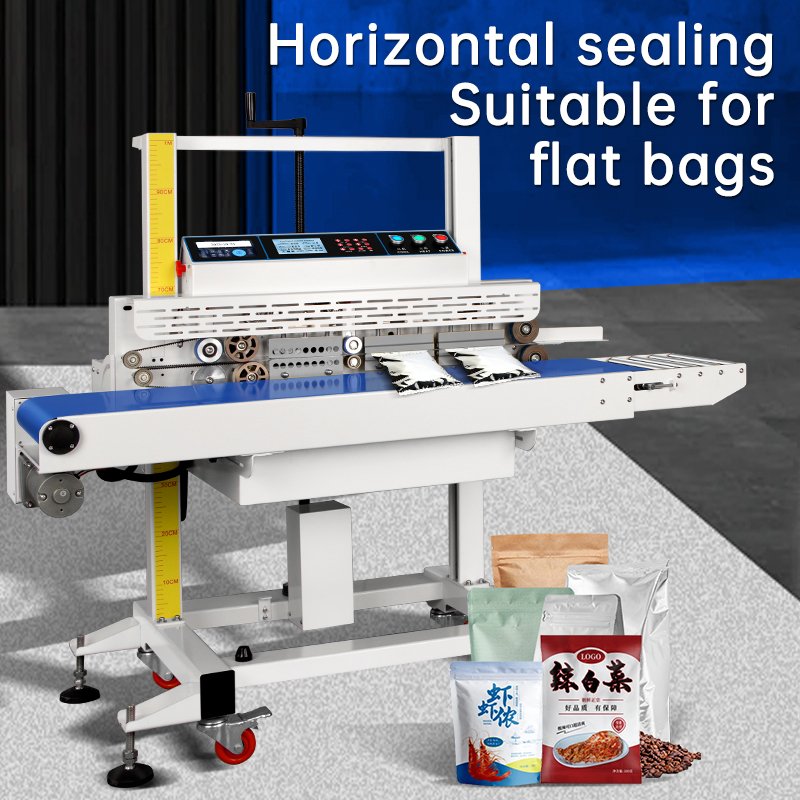

The JKF-280LW is the industry’s first all-around intelligent sealing machine that supports arbitrary adjustments for both vertical and horizontal orientations. By ingeniously combining dual motors, lead screws, and slide rails, it allows for seamless switching between vertical, horizontal, and inclined operating modes. Unlike traditional models, it eliminates the need for repeated disassembly, reinstallation, and debugging. Not only is it suitable for sealing any bagged product, but it can also be adjusted to any position according to the operator’s habits. This significantly enhances convenience and reduces labor intensity while greatly improving factory production efficiency.



Technical Parameters

Power 220V/50-60HZ Sealing tape spec 1450*18*0.22mm
Capacity 1700W Conveyor belt spec 2440*250*2mm
Conveying Motor 24V/120W/18K Main unit motor 60BYG2100-50A

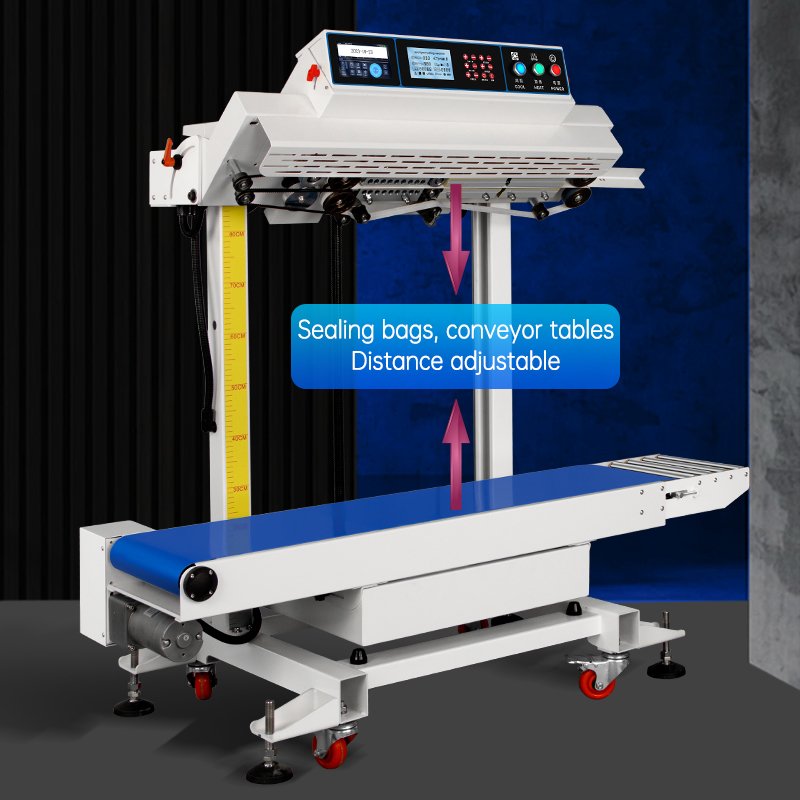

Conveyorable ground clearance 350-900(Adjustable) Toothed tape M5*560/670mm
Conveying speed 0-21(m/min) Heating tube spec 350W/150*12mm*4
Sealing width 15mm Conveyor load-bearing 15 kg

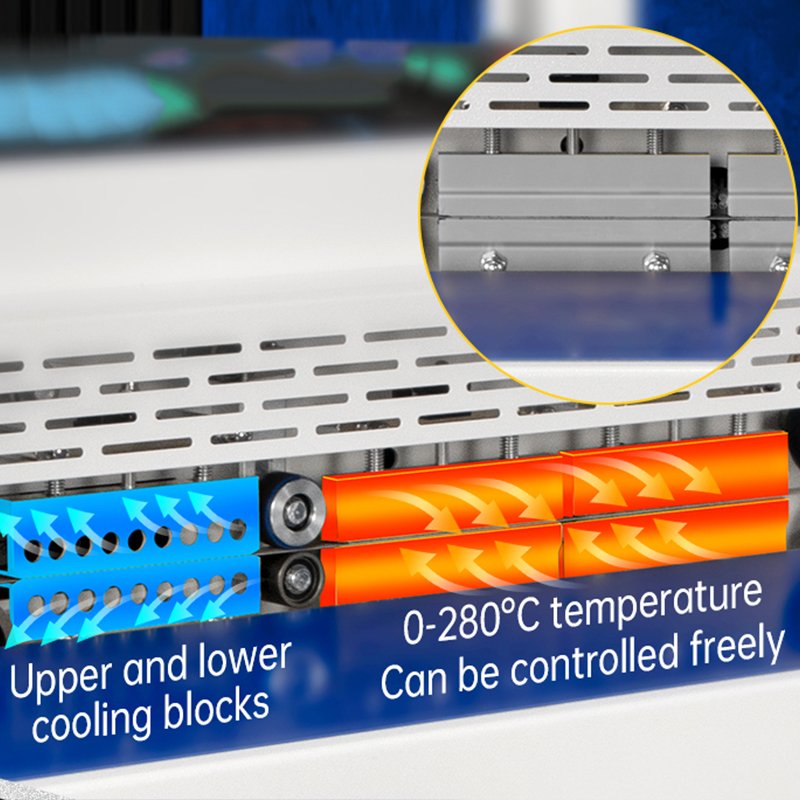

Temperature control range 0-280℃ Machine size 1390*600*1200mm
Max bag size 600*400*15C Machine weight 90kg
