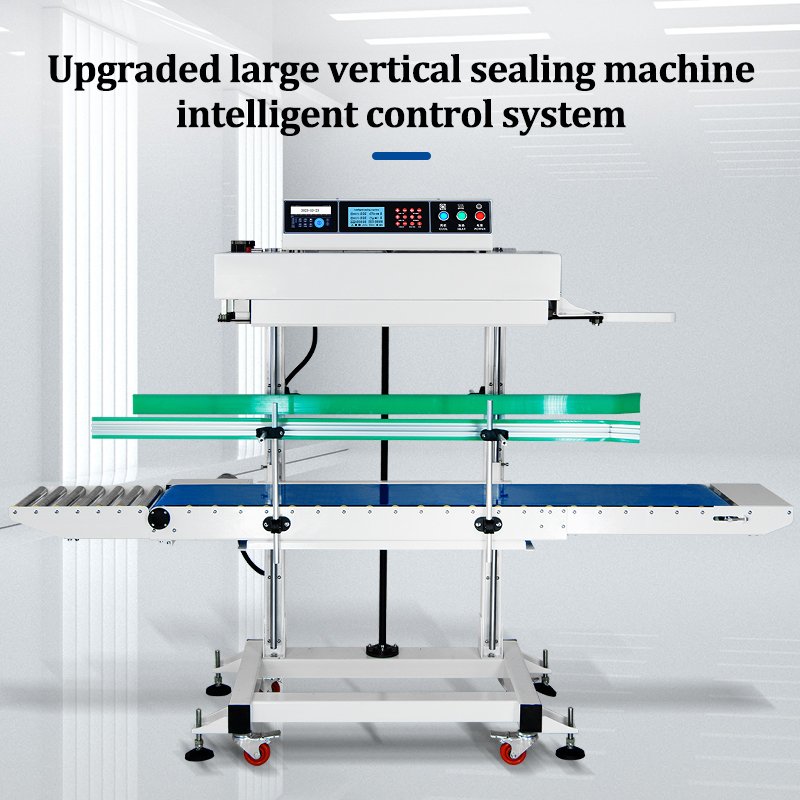

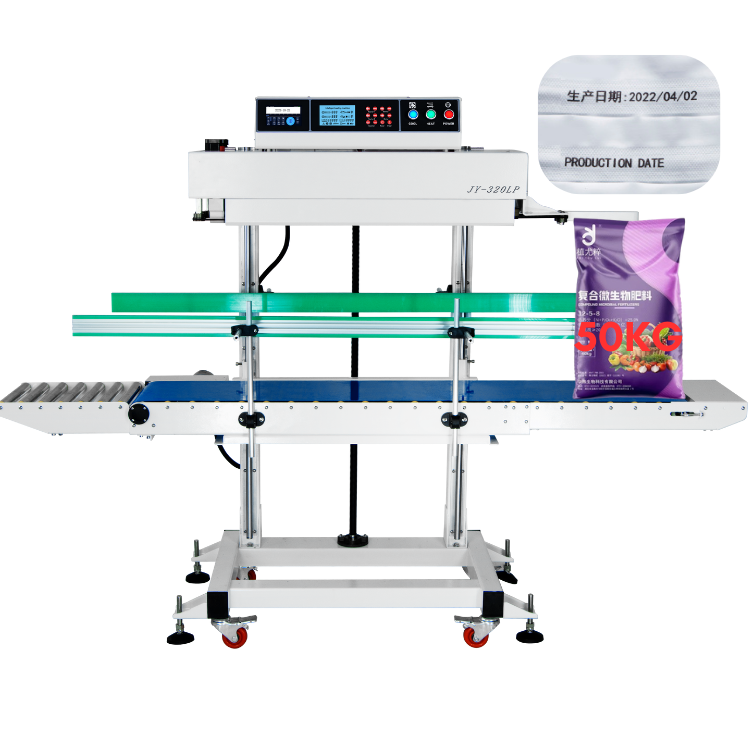

JKF-320LA Vertical intelligent sealing machine

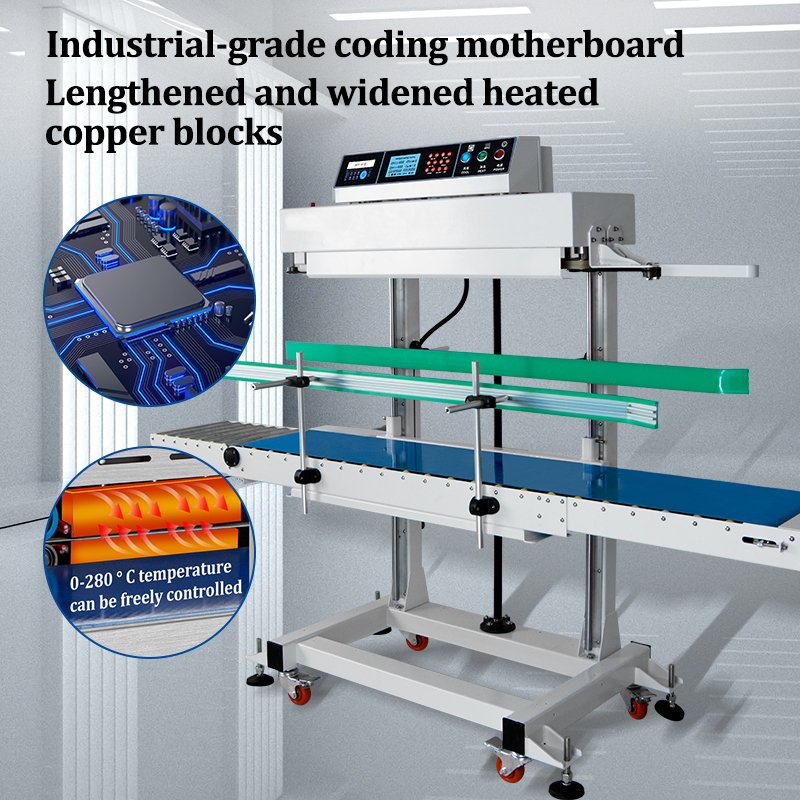

The JKF-320LA is an upgraded intelligent sealing machine, especially suitable for large bags, heavy-duty bags, and liquid bags. The maximum load per batch is 50 kg. It adopts a dual-motor independent control system, with the conveyor and main unit housing independently adjustable up and down. The heating copper block has been lengthened and enlarged, the sealing standard has been raised to 15mm, and the entire machine uses stainless steel screws, Renben bearings, and all transmission components have been replaced with metal parts, greatly improving its applicability to sealing various products. It can effectively seal nylon bags, composite bags, kraft paper bags, PP, PE, and aluminum foil bags.



Technical Parameters

Power Supply 220V/50-60hz Sealing Belt Spec. 1580*18*0.22mm
Power 1800w Conveyor Belt Spec. 3300*290mm
Motor 24V/200W/30K Adjustable Sealing Height 100-950mm(Height)
Sealing Speed 0-15(m/min) Heating Tube Spec. 180*12mm/450W*4

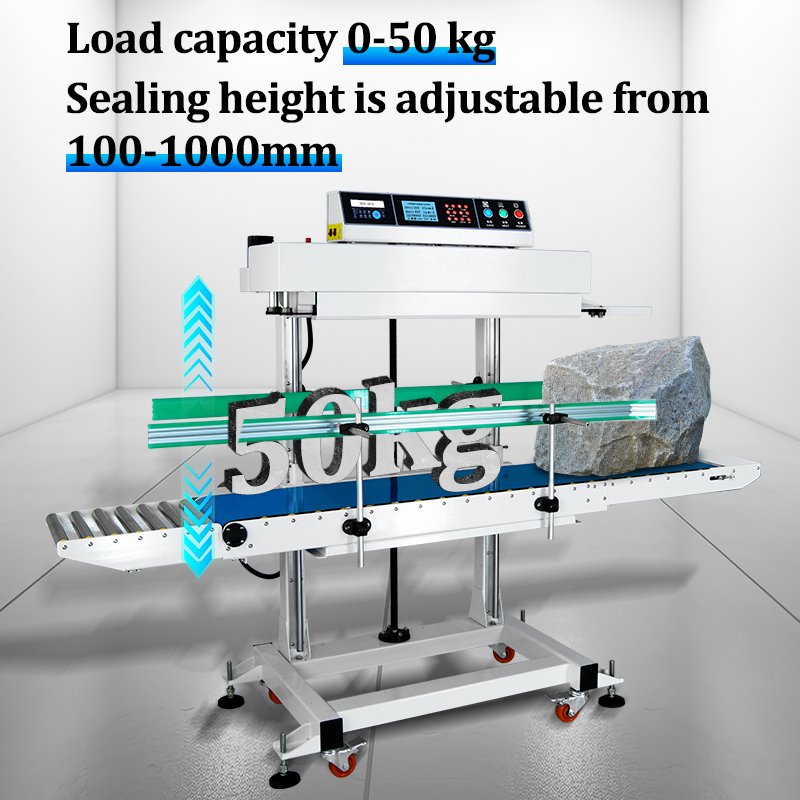

Sealing Width 15mm Conveyor Load Capacity 20-50kg
Temp. Control Range 0-300℃*2 Machine Dimensions 2150*600*1470
Max. Bag Size 1000*600*18c Machine Weight 120kg
