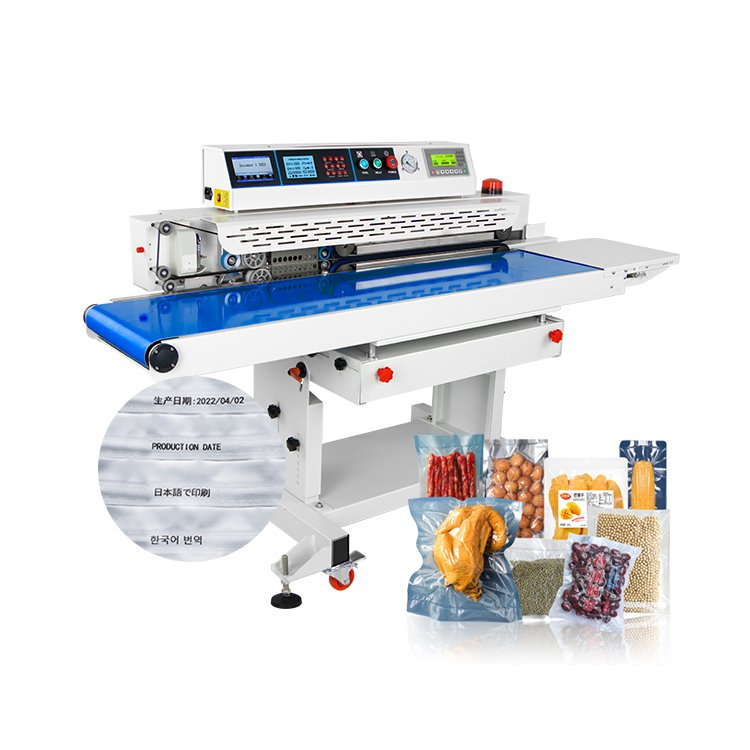

The JKF-350CC is a new generation of multi-functional integrated machine for vacuuming (air extraction), coding, and sealing. It has a completely different working method from ordinary vacuum sealing machines on the market: air extraction (vacuuming) is completed continuously by a single air nozzle that follows the sealing conveyor, which not only enables the product to achieve a true vacuum effect but also improves work efficiency. The whole machine is controlled by three independent control systems that control air extraction (following), sealing, and coding respectively. Combined with ingenious mechanical design, the actions of the three parts are perfectly coordinated!

Technical Parameters
| Power Supply | 220V/50HZ-60HZ | Max. Bag Size | 450*300mm*15c |
| Power | 1100W | Air Source Pressure | 0.5-0.8Mpa |
| Motor | 24V/120W/18K | Air Inlet Pipe Diameter | 8mm hose |
| Conveying Speed | 0-24(m/min) | Vacuum Level | -0.5-0.088Mpa |
| Sealing Width | 10mm | Vacuum Suction Rate | >=160L/min |
| Sealing Belt Spec. | 1210*18*0.22mm | Vacuum Time | 0.5-20s |
| Temp. Control Range | 0-260℃ | Sealing Belt Spec. (Outer) | 1450*16*12mm |
| Conveyor Belt Spec. | 3300*320*2mm | Sealing Belt Spec. (Inner) | 870/830*16*12mm |
| Heating Tube Spec. | 180*10mm/400w*2 | Machine Weight | 160kg |
| Conveyor Ground Clearance | 650-800mm | Machine Dimensions | 1850*800*1110mm |
