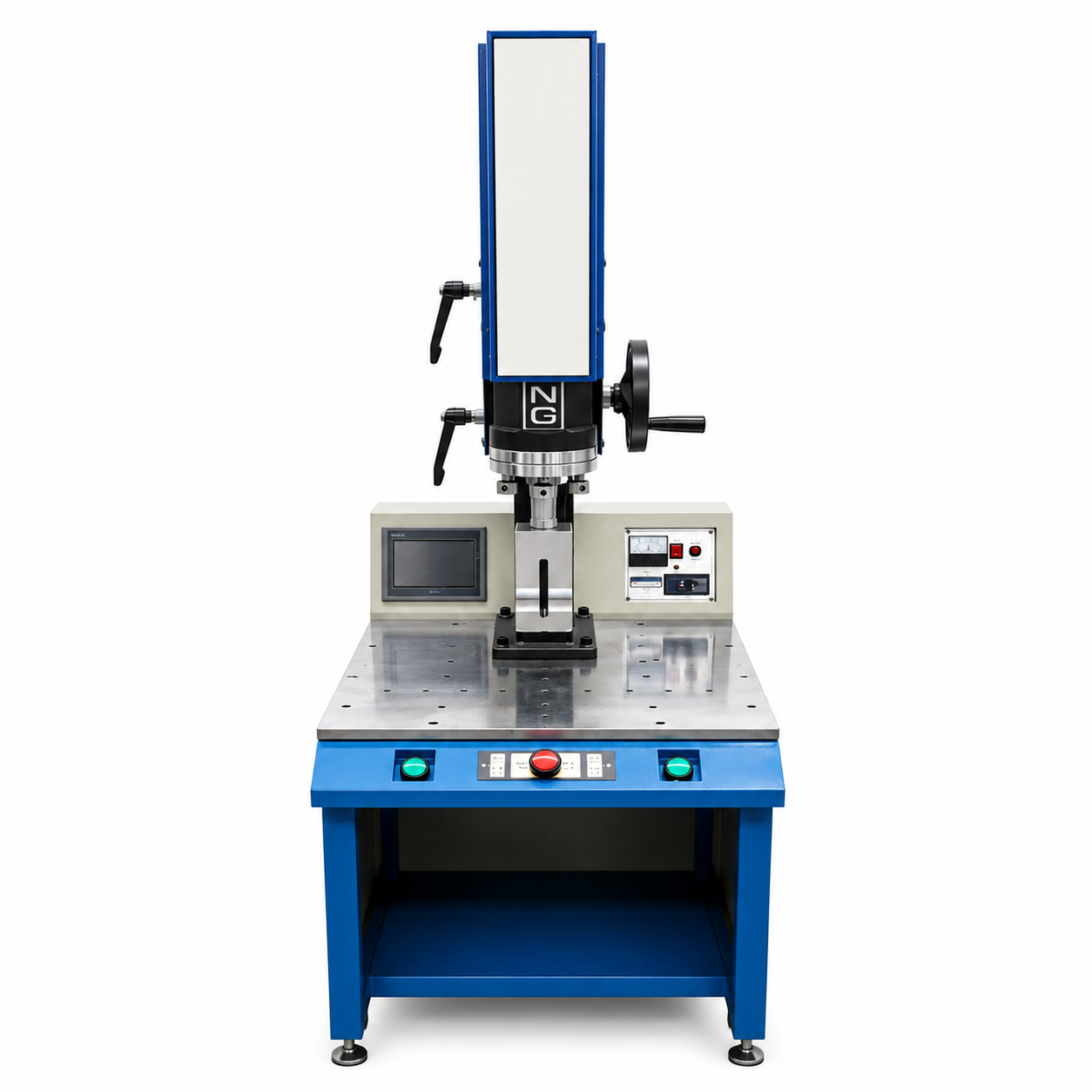

JKCF-2000S Servo Ultrasonic Welding Machine

The JKCF-2000S combines precision servo control with advanced digital ultrasonic technology, designed for welding, riveting, forming, and assembly of various thermoplastic materials. By converting high-frequency ultrasonic vibrations into frictional heat at the contact surface, the machine achieves fast and reliable welding without adhesives, screws, or additional consumables, providing strong, clean, and efficient welding results. Equipped with an intelligent digital control system, the machine features automatic frequency tracking, stable power output, and multi-parameter storage to ensure consistent welding quality and improved production efficiency. The servo-driven structure enables precise control of welding pressure, stroke, and positioning accuracy, making it suitable for PVC tubes, electronic components, automotive parts, medical products, packaging applications, and other precision plastic welding industries.

Input Power Supply AC 220V 50HZ Stroke Adjustment Fine screw adjustment
Main Power Switch Front panel of ultrasonic generator Welding Time 0.1–9.99 s
Machine Dimension 950 × 650 × 1750 mm Solidification Time 0.1–9.99 s
Output Power 20K-2000W(Optional according to product requirements) Repeat Positioning Accuracy ±0.01 mm ~ ±0.03 mm
Welding Head Stroke 0–75 mm Time Control Accuracy ±1 ms
Machine Stroke (Max) 75–450 mm Operation Interface 7-inch color touchscreen
Welding Area Customized according to product mold Operating Temperature +5°C ~ +50°C
Input Air Pressure 0–7 bar Storage / Transportation Temperature -25°C ~ +70°C
