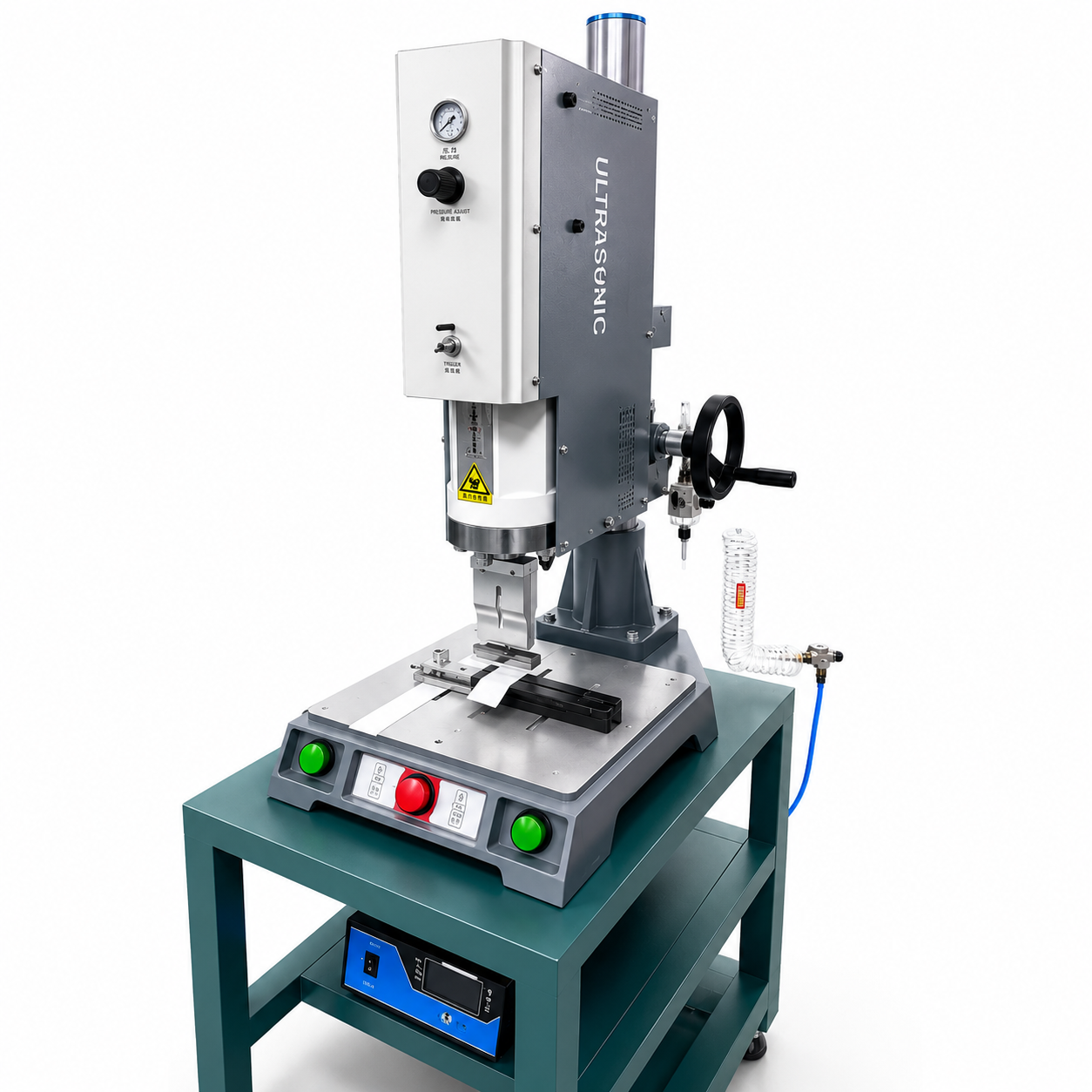

The JKCF-2600 Ultrasonic Welding Machine adopts advanced ultrasonic welding technology and is suitable for various thermoplastic welding applications. The machine does not require glue, solvents, or other auxiliary materials, helping improve production efficiency, reduce production costs, and ensure stable welding quality.By generating high-frequency mechanical vibrations, the machine creates rapid friction and heat between plastic surfaces. Once the material reaches its melting point, the joint is fused instantly and formed under pressure, achieving strong and clean welding results.
This series is available in 2000W, 2600W, and 3500W models to meet different product and production requirements.
| Input Power | AC 220V 50HZ | Operation Start | Two-hand start |
| Main Power Switch | Ultrasonic Power Box (Generator) Front View | Upward/Downward Movement | Speed adjustable (knob adjustment) |
| Size | Press: 400*620*1000mm
Power Box: 235*375*118mm |
Power (amplitude) adjustment | Touchscreen (10%-100%) |
| Output Power | 20K-2000W
15K-2600W/3500W |
Sine harmonic parameters | ≥97% |
| Welding Head Stroke | 0~75mm | Input power factor | ≥80% |
| Body Stroke (Max) | 75~450mm | Mold frequency range | ±300Hz |
| Welding Area | 2000W:φ90mm
2600W:φ120mm 3500W:φ160mm |
Automatic frequency tracking accuracy | ±5Hz |
| Input Air Pressure | >0~7bar | Output stability | ≤5% |
| Stroke Adjustment | Fine-tuning screw adjustment | Remote terminal dynamic response time | ≤10ms |
| Time Adjustment | 0.00-9.99s (Touchscreen) | Overcurrent protection current | 15A |
| Pressure Adjustment | Knob adjustment | Overcurrent protection time | 100ms |
| Product Count | Digital display count | Operating/use temperature | +5℃~+50℃ |
| Frequency Adjustment | Automatic frequency tracking | Storage/transport temperature | -25℃~+70℃ |
