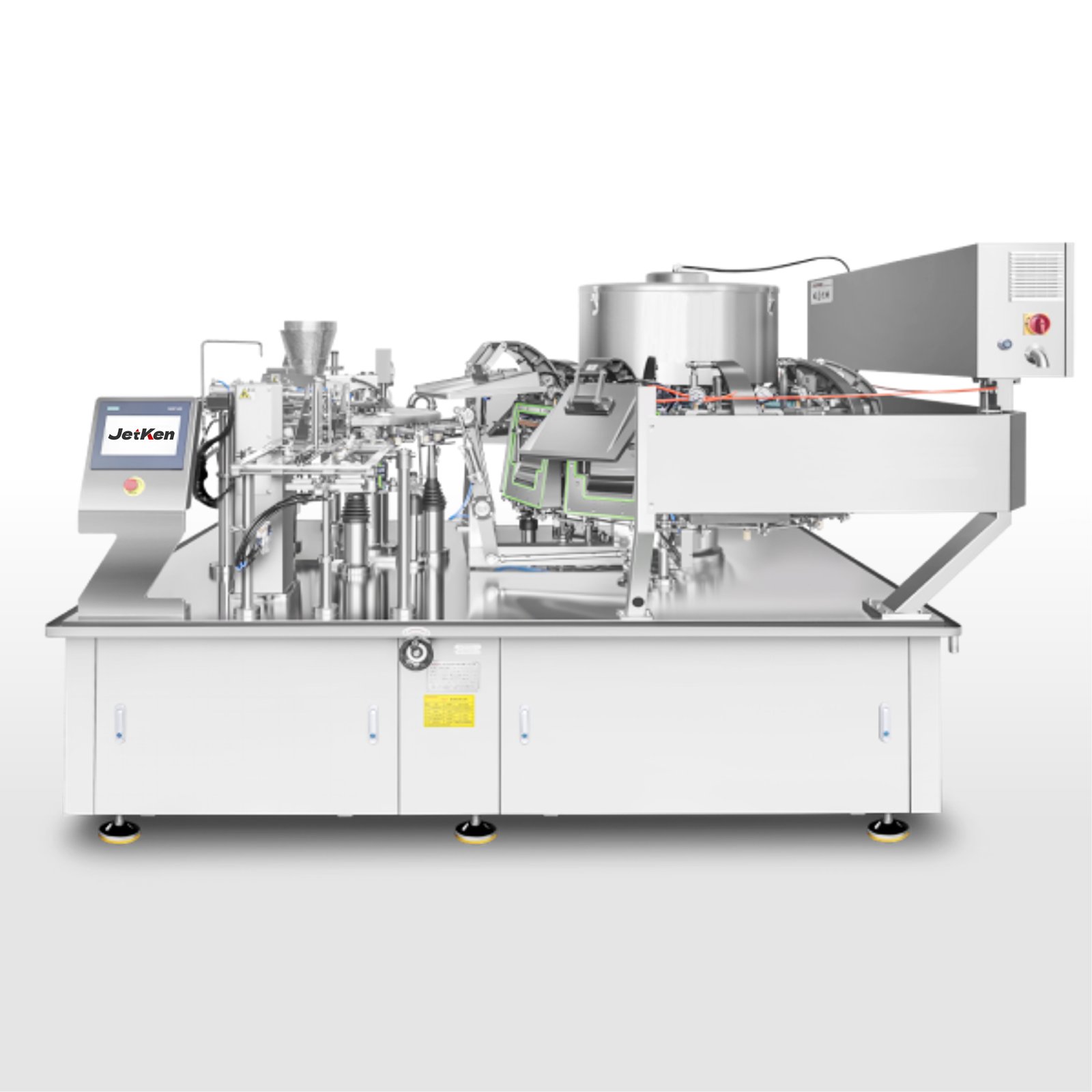

The JK10-160-12ZK is suitable for packaging pre-made bags with a width of ≤160mm. The machine consists of a 10-station bag feeding turntable and a 12-station vacuum chamber cover turntable. It is suitable for products with high vacuum requirements. When used with a feeding system, it can complete a series of tasks from filling, feeding, vacuum packaging and finished product conveying.
Technical Specifications
| Model | JK10-160-12ZK |
| Bag types | Four-side sealed flat bag |
| Bag size | Width: 70-160 mm; Length: 100-210 mm;
Thickness：≤ 50 mm |
| Fill weight | ≤ 400 g |
| Packaging speed | ≤ 80 packs/min (depending on condition of product and packaging bag material used) |
| No.of Working stations | Main Machine 10 stations:
1.Bag Loading 2. Reserve 3. Bag Opening 4. Material feeding 5. Reserve 6. Reserve 7. Reserve 8. Detection of full bags 9. Bag Transfer 10. Reserve Vacuum 12 stations: 1-2. Receiving bag 2-3. Closing lid 3-4. Semi-vacuum 4-5. Vacuum one 5-6. Vacuum two 6-7. Pressure holding 7-8. Pressure holding 8. Heat sealing 9. Cold seal 9-10. Semi-vacuum 10-11. Vacuum breaking 11-12. Opening the lid and dropping the contents into the bag 12. Fully opening the lid |
| Weight | 2600 kg |
| Dimensions (L*W*H) | 2600 mm* 1900 mm* 1800 mm (Length x Width x Height) |
| Total power | 7.37 kw (Vacuum pump not included） |
| Drive power supply | 380 V three-phase five-wire 50 Hz
(other power supplies can be customized) |
| Compress air requirement | ≥ 0.4 m³/min (compress air is provided by user) |
Electrical Configuration
| No. | Name | Brand | Place of origin |
| 1 | PLC | Huichuan (Siemens optional) | China |
| 2 | Touchscreen | Huichuan (Siemens optional) | China |
| 3 | Frequency converter | Huichuan (Siemens optional) | China |
| 4 | Main motor | KONE | China |
| 5 | Proximity switch | SICK | Germany |
| 6 | Vacuum pump | Zhongde | China |
| 7 | Solenoid valve | SMC | Japan |
| 8 | Air cylinder | SMC / AIRTAC | Japan/ Taiwan, China |
