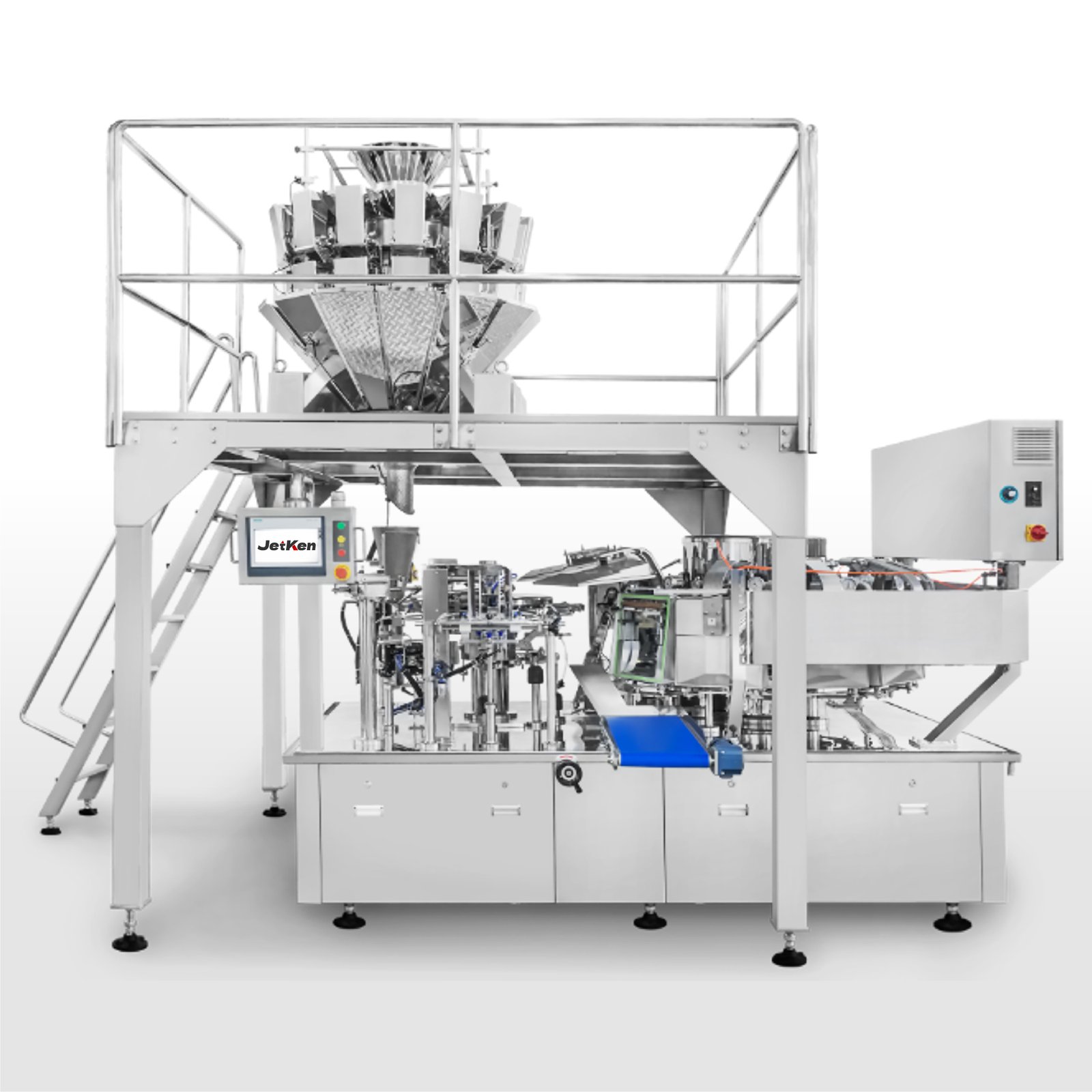

The JK8-240-10ZK is suitable for packaging pre-made bags with a width of ≤240mm. The machine consists of a 8-station bag feeding turntable and a 10-station vacuum chamber cover turntable. It is suitable for products with high vacuum requirements. When used with a feeding system, it can complete a series of tasks from filling, feeding, vacuum packaging and finished product conveying.
Technical Specifications
| Model | JK8-240-10ZK |
| Bag types | Four-side sealed flat bag |
| Bag size | Width: 120-240 mm; Length: 150-310 mm;
Thickness：≤ 95 mm |
| Fill weight | ≤ 1500 g |
| Packaging speed | ≤ 55 packs/min (depending on condition of product and packaging bag material used) |
| No.of Working stations | Main Machine 8 stations:
1.Bag Loading 2. Bag Opening 3. Material feeding 4. Reserve 5. Reserve 6. Reserve 7. Bag Transfer 8. Reserve Vacuum 10 stations: 1-2. Receiving bag 2-3. Closing lid 3-4. Vacuum one 4-5. Vacuum two 5-6. Pressure holding 6-7. Heat sealing 7-8. Cooling 8-9. Vacuum breaking 9-10. Opening lid + dropping bag 10. Fully opening lid |
| Weight | 3100 kg |
| Dimensions (L*W*H) | 2910 mm* 2060 mm* 1850 mm (Length x Width x Height) |
| Total power | 18.52 kw (Includes vacuum pump） |
| Drive power supply | 380 V three-phase five-wire 50 Hz
(other power supplies can be customized) |
| Compress air requirement | ≥ 0.4 m³/min (compress air is provided by user) |
Electrical Configuration
| No. | Name | Brand | Place of origin |
| 1 | PLC | Huichuan (Siemens optional) | China |
| 2 | Touchscreen | Huichuan (Siemens optional) | China |
| 3 | Frequency converter | Huichuan (Siemens optional) | China |
| 4 | Main motor | KONE | China |
| 5 | Proximity switch | SICK | Germany |
| 6 | Vacuum pump | Zhongde | China |
| 7 | Solenoid valve | SMC | Japan |
| 8 | Air cylinder | SMC / AIRTAC | Japan/ Taiwan, China |
