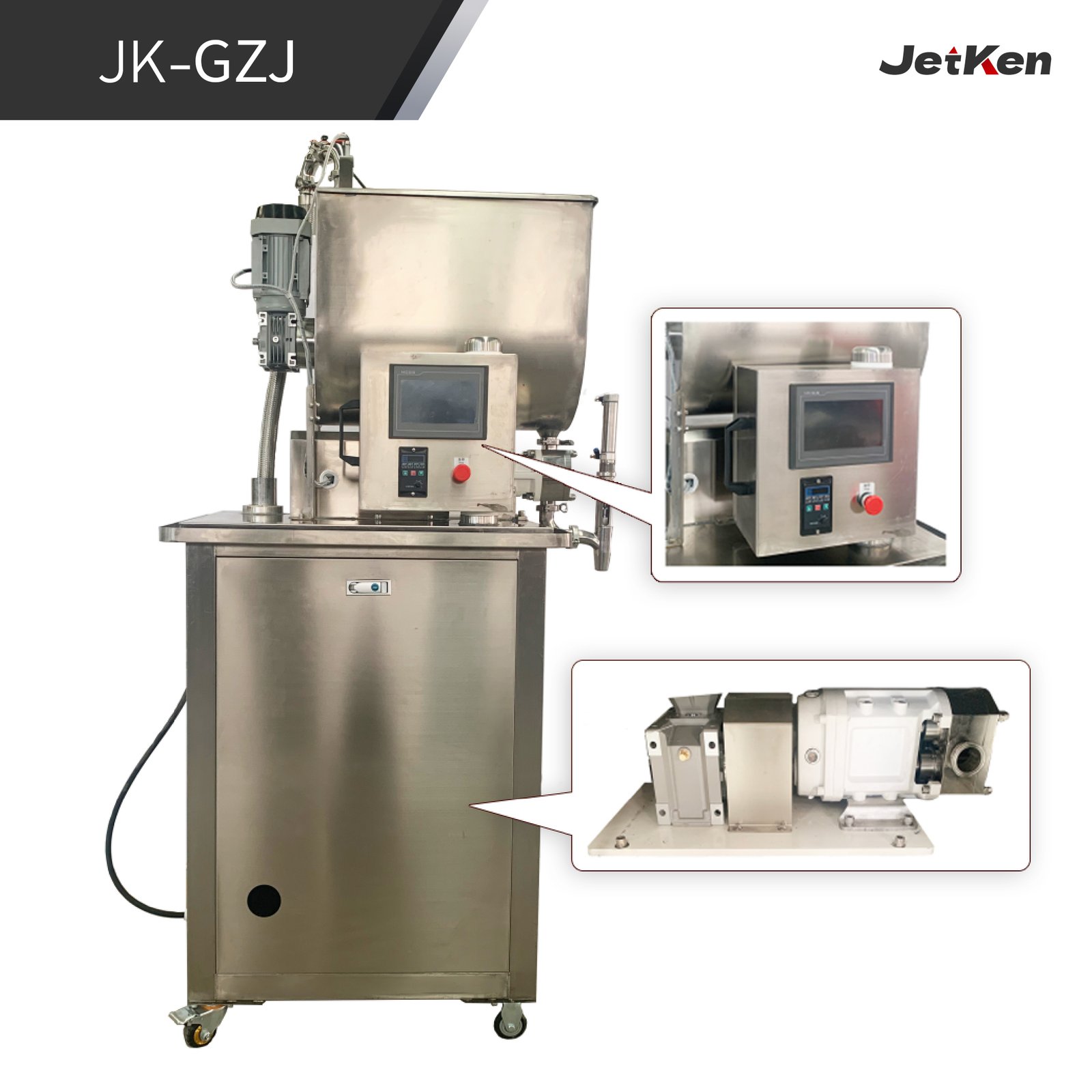

The integrated filling and replenishing machine consists of the WGTX-1800 filling machine and the LX3A-18. It features a 100L horizontal stirring hopper, PLC control, adjustable filling volume, and a filling valve. The pump head uses a waist-shaped rotor for smooth filling of granular materials, while the conveying pump head uses a three-lobe rotor for stronger suction, space saving, shorter pipelines, reduced resistance, and improved filling accuracy. It is suitable for high-frequency working environments. The rotor pump is driven by a servo motor linked to a Taiwan precision planetary reducer, ensuring smooth conveying and a wide filling range. It is widely used for replenishing and filling pastes, liquids, and sauces containing particles. Custom orders take 10 to 15 days.
Main Technical Data
| Item | A4 |
| Product Name/Specifications | GTX-1800 |
| Filling volume/per batch (ML) | 5-50000 |
| Motor power (kW) | 1 |
| Caliber (mm) | 38 |
| Error(Constant pressure) | ±1% |
| Pressure (MPa) | 0.2 |
| Material | 304 |
| Item | A1 |
| Product Name/Specifications | LX3A-18 |
| Flow rate (m³/h) | 0.4-3 |
| Maximum head (m/MPa) | 40/0.4 |
| Suction range(M) | 2 |
| Power (kW) | 2.2 |
| Revolutions per minute (R/min) | 50-400 |
| Caliber(DN) | 38mm |
| No. | model | Integrated filling and replenishing machine |
| 1 | External dimensions | 950mm*730mm*1900mm |
| 2 | weight | 200kg |
| 3 | Power supply/power | 220V/380V 1KW，2.2KW，0.75kw |
| 4 | Filling capacity | 5-50000ml |
| 5 | Number of filling heads | 1 |
| 6 | Filling speed | Less than 60 packs/min |
| 7 | Precision filling | ±1% |
