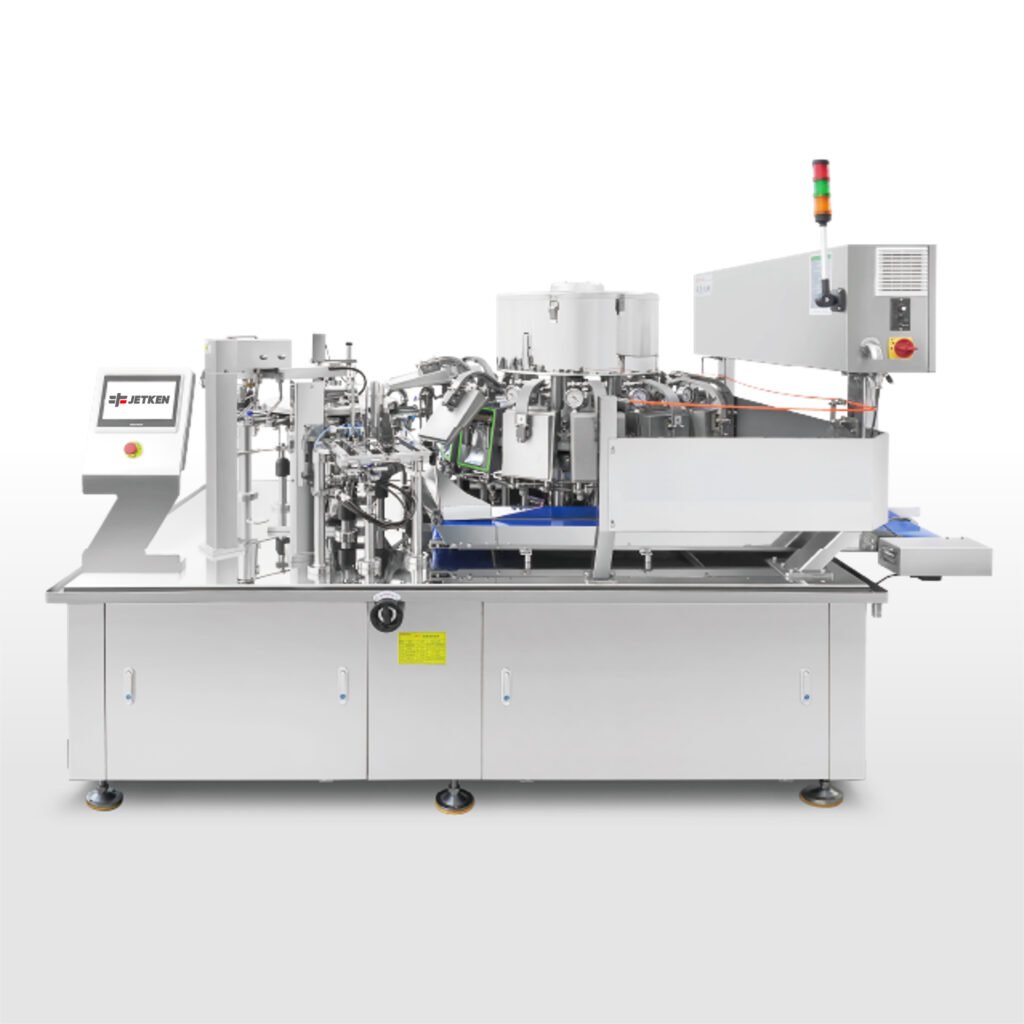

JK10-100-14ZK Premade Pouch Vacuum Packaging Machines

The JK10-100-14ZK is suitable for packaging pre-made bags with a width of ≤100mm. The machine consists of a 10-station bag feeding turntable and a 14-station vacuum chamber cover turntable. It is suitable for products with high vacuum requirements. When used with a feeding system, it can complete a series of tasks from filling, feeding, vacuum packaging and finished product conveying.
Request a Quote
Model JK10-100-14ZK
Bag Types Four-side Sealed Flat Bag
Bag Size Width: 60–100 mm; Length: 80–190 mm; Thickness: ≤ 50 mm
Fill Weight ≤ 200 g
Packaging Speed ≤ 100 packs/min
No. of Working Stations Main Machine (10 Stations): 1. Bag Loading 2. Reserve 3. Bag Opening
4. Material Feeding 5. Material Feeding into the Bag
6. Rotate and Blow Air 7. Clip the Pocket Mouth
8. Reserve 9. Bag Transfer 10. Reserve

Vacuum System (14 Stations):
1–2. Receiving Bag
2–3. Closing Lid
3–4. Semi-Vacuum
4–5. Vacuum One
5–6. Vacuum Two
6–10. Pressure Holding
10. Heat Sealing
10–12. Cold Seal
12. Clear
12–13. Open Lid
13–14. Put in Bag
Weight 3000 kg
Dimensions (L × W × H) 2610 × 1800 × 1800 mm (Without Finished Product Output)
Total Power 11.27 kW (Includes Vacuum Pump)
Drive Power Supply 380 V Three-phase Five-wire 50 Hz (Other Power Supplies Can Be Customized)
Compressed Air Requirement ≥ 0.5 m³/min (Compressed Air Is Provided by User)
