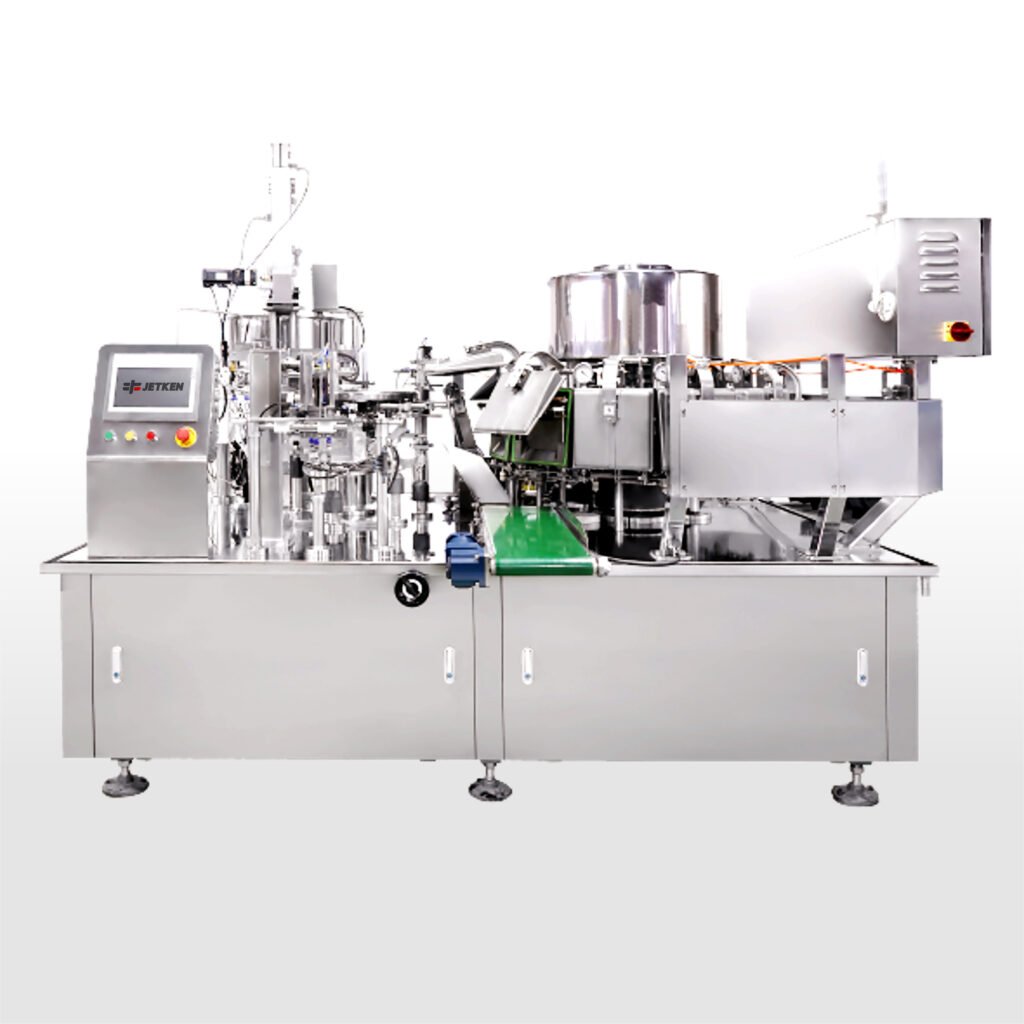

| Model | JK10-130-14ZK |
| Bag Types | Four-side Sealed Flat Bag |
| Bag Size | Width: 60–130 mm; Length: 100–190 mm; Thickness: ≤ 50 mm |
| Fill Weight | ≤ 300 g |
| Packaging Speed | ≤ 90 packs/min |
| No. of Working Stations | Main Machine (10 Stations): 1. Bag Loading 2. Reserve 3. Bag Opening 4. Material Feeding 5. Material Feeding into the Bag 6. Rotate and Blow Air 7. Clip the Pocket Mouth 8. Reserve 9. Bag Transfer 10. Reserve. Vacuum System (14 Stations): 1–2. Receiving Bag 2–3. Closing Lid 3–4. Semi-Vacuum 4–5. Vacuum One 5–6. Vacuum Two 6–10. Pressure Holding 10–11. Heat Sealing 11–12. Cold Seal 12–13. Clear 13–14. Open Lid 14. Put in Bag |
| Weight | 3100 kg |
| Dimensions (L × W × H) | 2610 × 1800 × 1800 mm (Without Finished Product Output) |
| Total Power | 11.27 kW (Includes Vacuum Pump) |
| Drive Power Supply | 380 V Three-phase Five-wire 50 Hz (Other Power Supplies Can Be Customized) |
| Compressed Air Requirement | ≥ 0.5 m³/min (Compressed Air Is Provided by User) |
