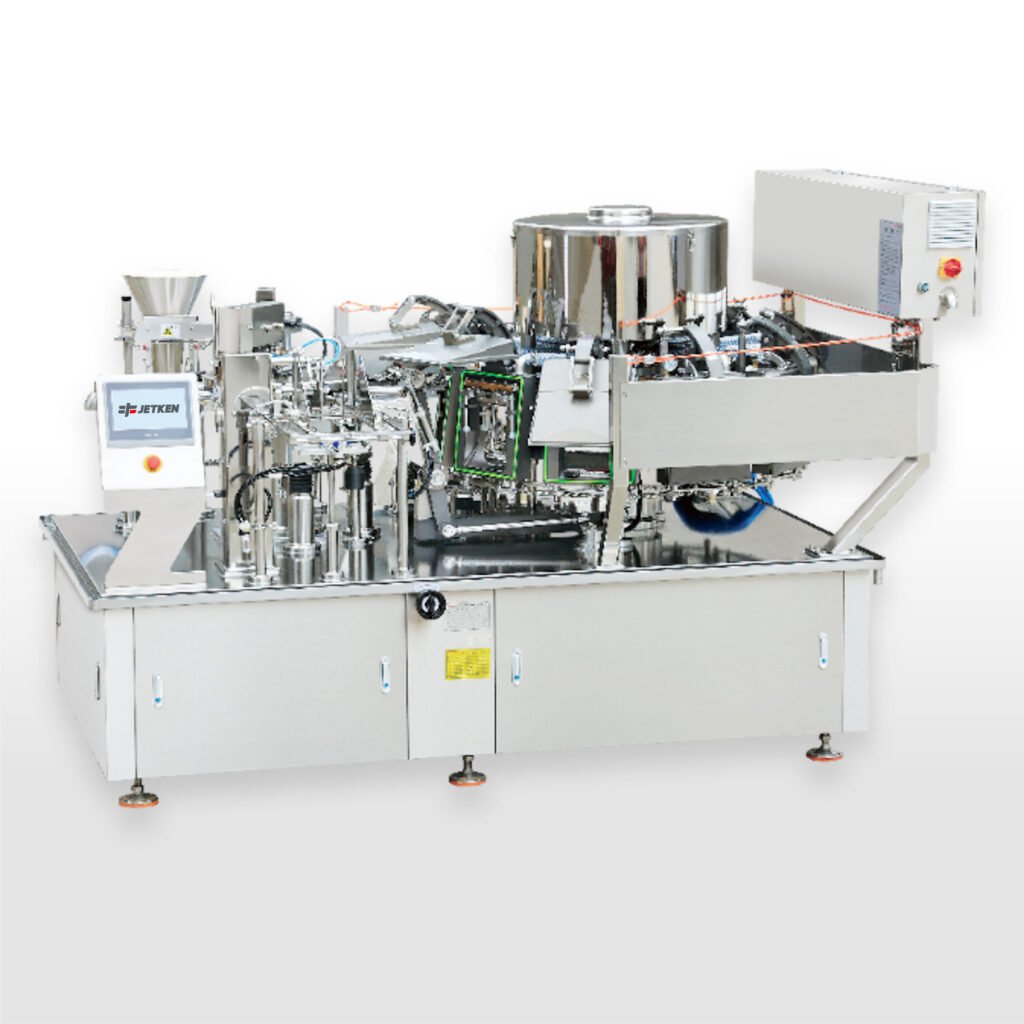

JK8-200-10ZK Premade PouchVacuum Packaging Machines

The JK8-200-10ZK is suitable for packaging pre-made bags with a width of ≤200mm. The machine consists of a 8-station bag feeding turntable and a 10-station vacuum chamber cover turntable. It is suitable for products with high vacuum requirements. When used with a feeding system, it can complete a series of tasks from filling, feeding, vacuum packaging and finished product conveying.
Request a Quote
Model JK8-200-10ZK
Bag Types Four-side Sealed Flat Bag
Bag Size Width: 120–200 mm ; Length: 150–290 mm ; Thickness: ≤ 80 mm
Fill Weight ≤ 1200 g
Packaging Speed ≤ 55 packs/min
No. of Working Stations Main Machine (8 Stations): 1. Bag Loading 2. Bag Opening 3. Material Feeding
4. Reserve 5. Reserve 6. Reserve 7. Bag Transfer 8. Reserve

Vacuum System (10 Stations):
1–2. Receiving Bag
2–3. Closing Lid
3–4. Vacuum One
4–5. Vacuum Two
5–6. Pressure Holding
6–7. Heat Sealing
7–8. Cooling
8–9. Vacuum Breaking
9–10. Opening Lid + Dropping Bag
10. Fully Opening Lid
Weight 3000 kg
Dimensions (L × W × H) 2910 × 2060 × 1850 mm (Without Finished Product Output)
Total Power 18.52 kW (Includes Vacuum Pump)
Drive Power Supply 380 V Three-phase Five-wire 50 Hz (Other Power Supplies Can Be Customized)
Compressed Air Requirement ≥ 0.4 m³/min (Compressed Air Is Provided by User)
