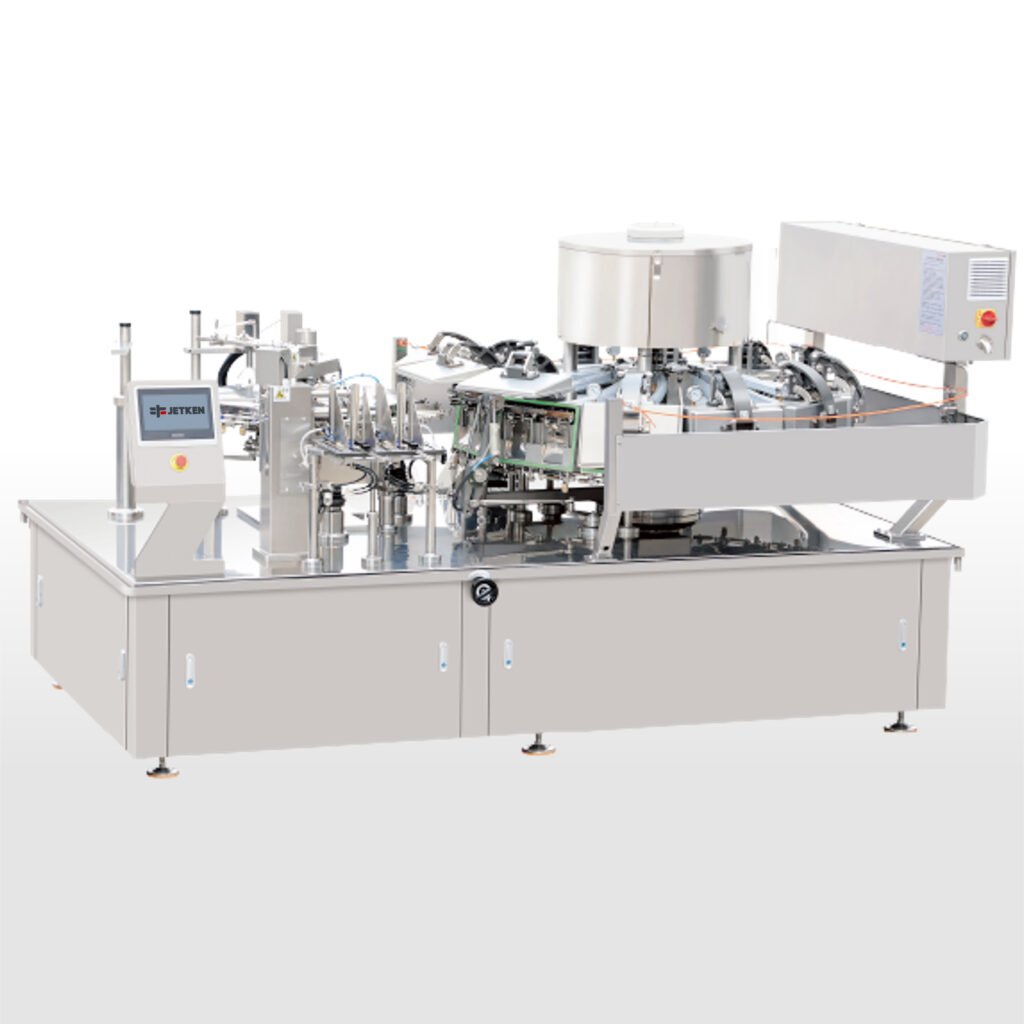

JK8-S95-12ZK Premade Pouch Vacuum Packaging Machines

The JK8-S95-12ZK is suitable for high-speed packaging of pre-made bags with a width of ≤95mm. The machine consists of 8 bag feeding turntables and 12 vacuum chamber cover turntables. Compared with single-bag vacuum packaging machines, each packaging station of this equipment can accommodate two bags at the same time, and a single vacuum chamber can hold two bags. It features high production capacity and small footprint.
Request a Quote
Model JK8-S95-12ZK
Bag Types Four-side Sealed Flat Bag
Bag Size Width: 60–95 mm; Length: 100–190 mm; Thickness: ≤ 50 mm
Fill Weight ≤ 200 g
Packaging Speed ≤ 150 packs/min
No. of Working Stations Main Machine (8 Stations): 1. Bag Loading 2. Bag Opening 3. Material Feeding
4. Reserve 5. Reserve 6. Reserve 7. Bag Transfer 8. ReserveVacuum System (12 Stations):
1–2. Receiving Bag
2–3. Closing Lid
3–4. Vacuum One
4–5. Vacuum Two
5–8. Pressure Holding
8–9. Heat Sealing
9–10. Cooling
10–11. Vacuum Breaking
11–12. Opening the Lid and Dropping Bag
12. Fully Opening the Lid
Weight 5000 kg
Dimensions (L × W × H) 3340 × 2130 × 1800 mm (Without Finished Product Output)
Total Power 9.49 kW (Includes Vacuum Pump)
Drive Power Supply 380 V Three-phase Five-wire 50 Hz (Other Power Supplies Can Be Customized)
Compressed Air Requirement ≥ 0.5 m³/min (Compressed Air Is Provided by User)
